Teknik: Fotodokumentation DTC2
![Teknik: Fotodokumentation DTC2](/content/images/size/w2000/2022/08/20170119-DSC_0227-1.jpeg)
Då det verkar vara en ovanlig maskin vi har kommit över gjorde vi i kväll en foto-dokumentation på föreningens Facit DTC2.
Utsidan

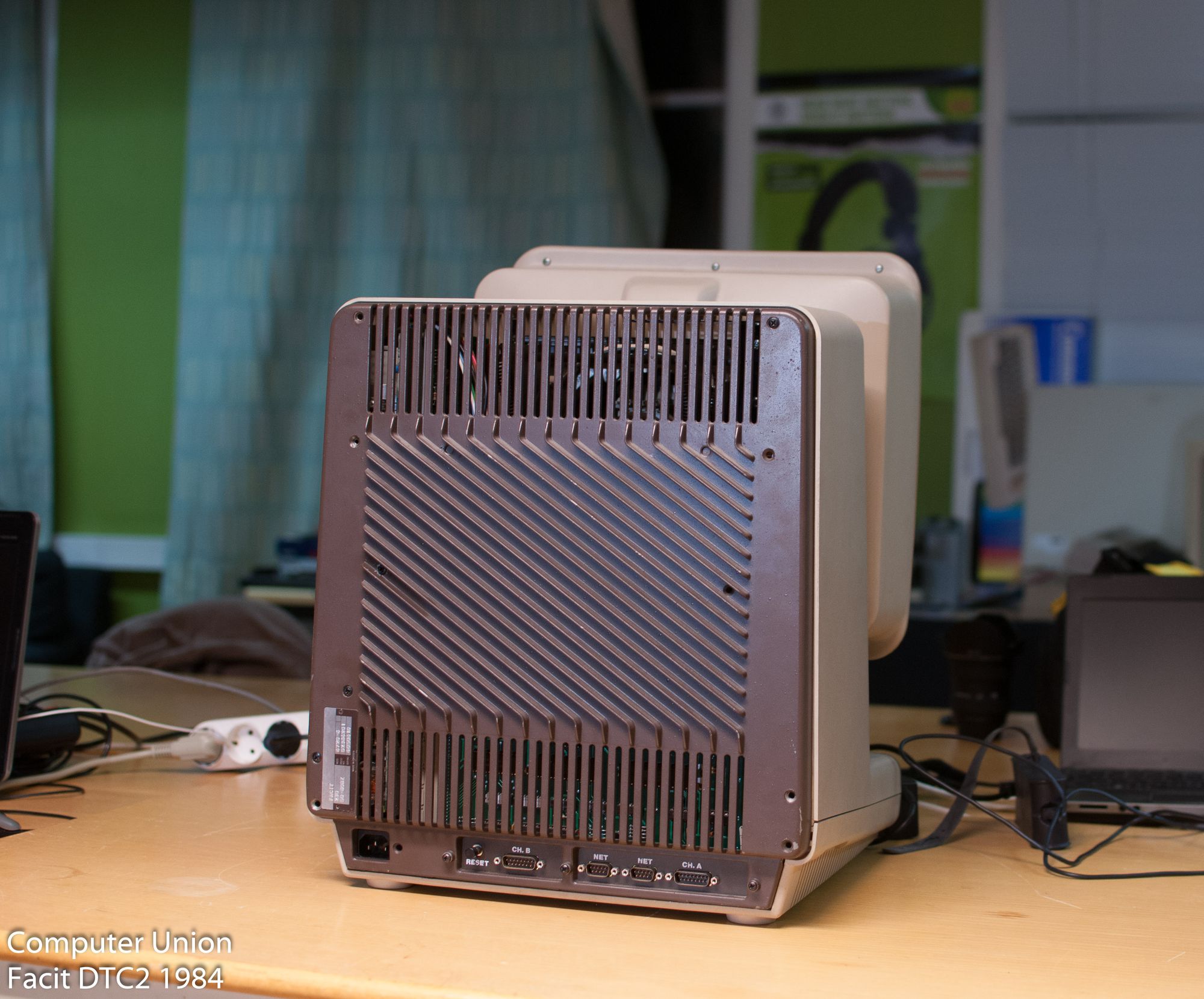

Datorn har ett chassi av gjuten aluminium. Kort är fastmonterad i den löstagbara baksidan.
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0198.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0199.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0200.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0201.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0202.jpeg)
Nätdelen
Maskinen har en switchad nätdel. Väldigt ovanligt år 1984.
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0203.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0205.jpeg)
Moderkortet
Såhär ser moderkortet ut. Det finns inte några synliga skador. Batteriet fungerar fortfarande.
![](https://www.comun.se/content/images/2022/08/image-4.png)
Dotterkort

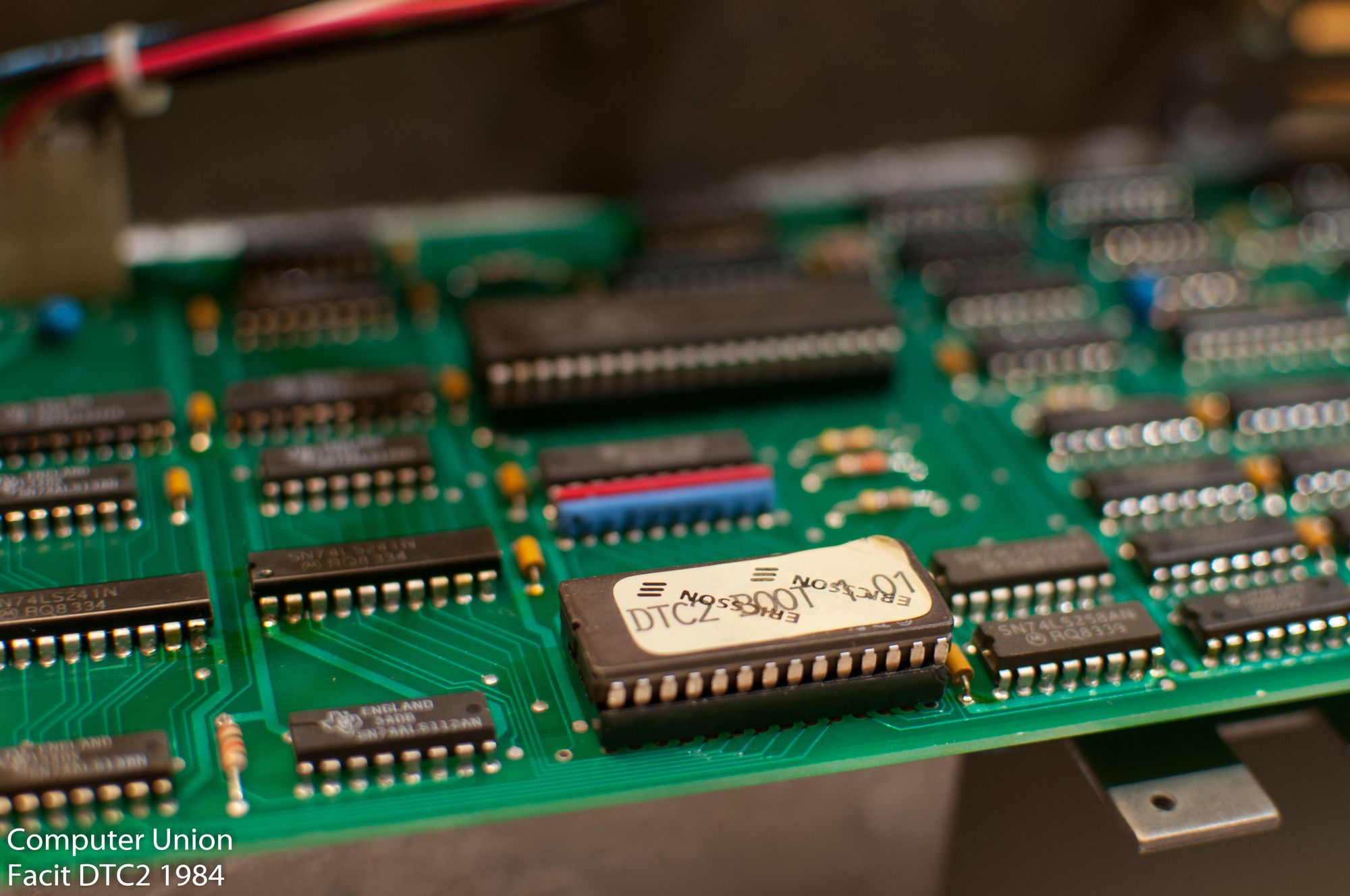

På moderkortet sitter det dotterkort med olika funktioner. En ovanlig detalj är att Floppy-kontrollern har en egen Z80-cpu.
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0209.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0214.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0219.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0213.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0217.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0220.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0221.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0222.jpeg)
Bakgrundsbilder?
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0223.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0225.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0227.jpeg)
![](https://www.comun.se/content/images/2022/08/20170119-DSC_0228.jpeg)
